Exhaust Gas Recirculation (EGR) is a key technology in internal combustion engines, designed to address the dual challenge of reducing emissions and improving fuel efficiency. By redirecting a portion of exhaust gases back into the combustion chamber, the EGR system effectively controls the combustion process, lowering peak temperatures and suppressing the formation of nitrogen oxides (NOx), which are major contributors to air pollution and smog. As environmental regulations become increasingly strict, EGR has become an essential tool for automakers in balancing performance, efficiency, and minimizing the automotive industry's ecological footprint.
Exhaust Gas Recirculation (EGR)
EGR is an emissions-reducing technology used in internal combustion engines. It works by rerouting a portion of exhaust gases back into the engine's intake manifold. This process lowers combustion temperatures, reducing NOx emissions and improving fuel efficiency. EGR is a vital component in modern vehicles to comply with stringent environmental regulations.
What is Exhaust Gas Recirculation?
Exhaust Gas Recirculation (EGR) is an indispensable part of modern diesel-powered vehicles. Its primary function is to reduce NOx emissions. EGR is used in both diesel and gasoline engines as a technology designed to lower nitrogen oxide levels.

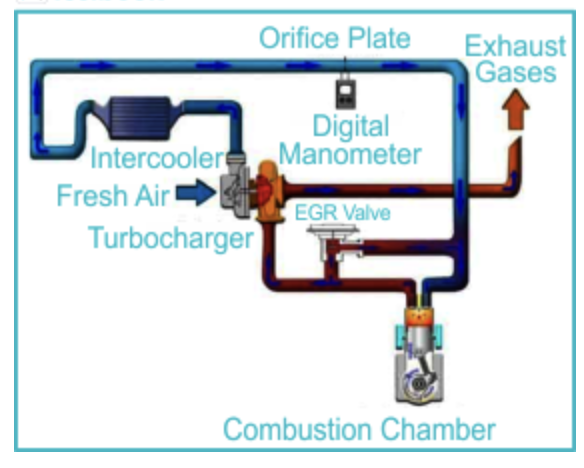

EGR Diagram
An EGR system in an internal combustion engine typically includes components such as the EGR valve, exhaust manifold, intake manifold, and piping. The system reroutes a portion of the exhaust gases back to the engine intake, reducing emissions and controlling combustion temperatures, which in turn improves fuel efficiency and minimizes pollutants.
Picture comes from internet
How Does EGR Work?
EGR plays a key role in increasing the specific heat capacity of the gas mixture in the combustion chamber by mixing exhaust gas with fuel, oxygen, and combustion byproducts. This increase in heat capacity helps lower the adiabatic flame temperature, thereby influencing the combustion process.
In conventional spark-ignition (SI) engines, between 5% to 15% of exhaust gases are redirected into the intake manifold during the EGR process. The upper limit of this amount is determined by the need to maintain a continuous flame front during combustion. Overusing EGR, especially in poorly configured systems, can lead to misfires and incomplete combustion.
While EGR does slow down combustion, its impact can often be mitigated by advancing the ignition timing. The effect of EGR on engine efficiency largely depends on the specific engine design, sometimes resulting in a delicate balance between optimizing efficiency and controlling NOx emissions.
Benefits of Exhaust Gas Recirculation
The advantages of EGR include:
- Reduced NOx Emissions: EGR effectively reduces NOx formation by introducing inert exhaust gases into the combustion process, which lowers peak combustion temperatures that lead to NOx production.
- Reduced Throttling Losses: Introducing inert gases into the intake system requires a wider throttle opening to achieve the same power output, which increases intake manifold pressure and reduces throttling losses.
- Reduced Heat Dissipation: Lowering peak combustion temperatures not only reduces NOx formation but also lessens heat dissipation to the combustion chamber walls. This conservation of thermal energy allows more heat to be converted into mechanical work during the expansion stroke.
- Improved Combustion Stability: By regulating peak temperatures, EGR promotes smoother combustion and helps prevent knocking and pre-ignition, which could otherwise damage the engine.
- Increased Fuel Efficiency: By reducing peak combustion temperatures and minimizing throttling losses, EGR helps improve fuel efficiency, allowing more energy to be converted into useful mechanical work.
- Particulate Matter Reduction: EGR helps reduce the formation of particulate matter, which are small solid particles that contribute to air pollution and pose health risks.
- Sustainable Performance: EGR technology enables engines to strike a balance between performance and emissions reduction, supporting sustainable transportation solutions.
- Advance Timing Compensation: Although EGR may slow combustion slightly, this effect can typically be compensated by advancing the spark timing, ensuring optimal engine performance.
- Emission Control Synergy: EGR can be combined with other emission control technologies, such as catalytic converters, to further reduce harmful pollutants.
- Extended Engine Life: The lower combustion temperatures and smoother combustion promoted by EGR contribute to extending engine life and reducing wear.
Limitations of Exhaust Gas Recirculation
Some limitations of EGR include:
- Reduced Power Output: Excessive use of EGR can reduce power output because it decreases the density of the air-fuel mixture, which can affect overall engine performance and responsiveness.
- Incomplete and Uneven Combustion: In some cases, too much EGR can lead to incomplete combustion, resulting in unstable idling, misfires, and reduced engine efficiency.
- Maintenance and Reliability: Over time, carbon deposits can accumulate in the EGR system, leading to clogging of the EGR valve and related components. This can affect the system’s reliability and require maintenance or replacement.
- Impact on Cooling Systems: EGR introduces hot exhaust gases into the intake system, which raises intake temperatures and may affect the efficiency of the cooling system.
- Complexity and Cost: Integrating an EGR system adds complexity to the engine, requiring additional components such as sensors, valves, and control systems. This complexity can increase manufacturing costs and maintenance requirements.
