Ultrasonic Welding vs. Laser Welding

Both ultrasonic welding and laser welding are efficient methods, but what sets them apart? Let's break down the principles, benefits, and applications of each.

Ultrasonic welding uses a high-frequency vibration transmitted through a system (generator, transducer, booster, and welding horn) to two workpieces under pressure. The resulting friction at the surface creates a molecular bond without fully melting the material.

Ultrasonic welding is particularly useful for metals like gold, silver, copper, aluminum, and nickel. The materials need to be ductile and pure for optimal results.

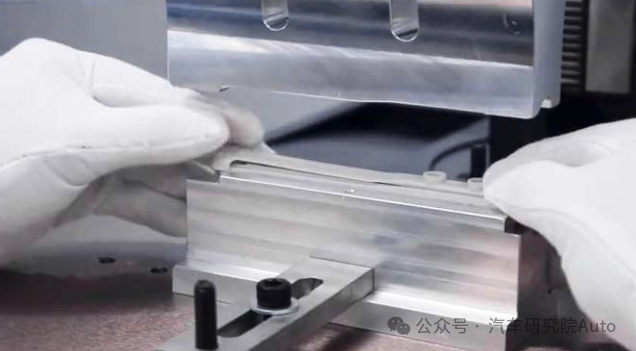

How Ultrasonic Welding Works

In ultrasonic welding, the generator transfers ultrasonic energy to the materials being joined. The materials are held together under pressure while the vibrations create internal friction. This friction causes the materials to melt slightly, forming a solid bond as they cool down.

Image comes from internet

Advantages of Ultrasonic Metal Welding:

• Low pressure and energy consumption.
• Metals do not melt, preserving their properties.
• Good conductivity and low electrical resistance.
• Works on oxidized or plated surfaces.
• Fast, reliable, and easily integrated into automated production.

Advantages of Ultrasonic Plastic Welding:

• No need for preheating or cleaning.
• No sparks or additional adhesives required.
• Fast, precise, and strong welds with good sealing properties.
• Minimal deformation, clean surfaces, and aesthetically pleasing results.
• Environmentally friendly with no waste products or harmful emissions.

Limitations of Ultrasonic Welding:

• Limited to certain materials, especially thermoplastics.
• Works best for specific joint types, mainly lap joints.
• Setup for new welding operations can be time-consuming and requires custom tools.
• Equipment is more expensive than traditional welding methods, especially automated systems.

Laser Welding

Laser welding is a highly efficient and precise method using a focused high-energy laser beam. The laser beam is concentrated on a small area, rapidly creating a high-temperature zone that melts and joins the materials.

How Laser Welding Works

A laser beam is directed onto the materials being joined, and the energy is absorbed to form a molten pool. As the materials cool, a strong bond is created. The process can be finely adjusted by altering the laser’s focus, power, and speed.

Advantages of Laser Metal Welding:

• Minimal thermal stress and deformation.
• Works on high-strength alloys and materials like titanium and quartz.
• Can weld different materials together.
• Non-contact process with no wear on tools.
• Suitable for vacuum environments and complex internal structures.

Limitations of Laser Metal Welding:

• Requires thorough surface cleaning to avoid defects like porosity.
• May cause surface collapse, cracking, or edge defects if not properly controlled.
• Requires precise alignment and the use of filler material in some cases.

Image comes from internet

Laser welding is a highly efficient and precise method using a focused high-energy laser beam. The laser beam is concentrated on a small area, rapidly creating a high-temperature zone that melts and joins the materials.

How Laser Welding Works

A laser beam is directed onto the materials being joined, and the energy is absorbed to form a molten pool. As the materials cool, a strong bond is created. The process can be finely adjusted by altering the laser’s focus, power, and speed.
